THE SABELLA FLEX™ TOTAL DUAL AXIS PATIENT POSITIONING SYSTEM FOR BREAST & THORAX.
The SaBella Flex™ is a patented, Dual Axis™ design which allows you to adjust posture and provides a much wider range of positions than conventional breast and lung systems. Optimal chest slope and breast positioning is easily achievable to allow for more accurate and safer treatment options and better patient outcomes. The SaBella Flex™ can be used for breast, pelvis, lung, SBRT and head and neck treatments.
The SaBella Flex™ can quickly and securely be adjusted and indexed to maximize treatment requirements and patient comfort with your patient in situ. This saves time and costs.
Get to know our SaBella Flex™ Patient Positioning System for Breast and Thorax – click to view our Introductory video and the CT Flythrough and see what’s inside and out.
Gen 1 Arm Non Adjustable Arm Bolsters Shown
We at CDR Systems are passionate that design and function work together. Each component of the Sabella Flex™ has been meticulously crafted to maximize the functionality of the whole system. All the while ensuring you can perform your treatments as efficiently and effectively as possible.
> Dual Flex™ adjustability allowing a wider range of patient positioning over conventional systems.
> Elevation angles of 0°, 10°, 15° and 20° provided as standard – any angles between 5° and 28° available separately (in 0.5° increments).
> Patented Secondary Flex system provides an indexable and comfortable method to optimize your patient’s posture, chin and cranial position independently of chest slope while enhancing breast position.
> SafeLock™ system provides unmatched stability eliminating potential injuries to patients or therapists.
> Lightweight with carry handles for ease of moving and a wall mount is available for ease of storage.
> Vacuum Lock™ cushion compatible.
> Comfortable indexable arm, neck and head supports.
> Adjustments can be made quickly minimizing patient set-up & treatment time.
> COPD patient compatible.
> Rigid sturdy feel without any flex regardless of patient size.
> All Linear Accelerators including Halcyon.
> All CT, PET, MR and MR LINAC imaging and treatment machines with bore size greater than 60cm.
> All 3D & 4D Optical Imaging Systems.
> MR environments with MR Compatible version.*
*requires MR Compatible Specification at time of order
Interchangeable
arm/shoulder bolsters,
allowing adjustable height
and width for optimum
patient positioning
and comfort.
Optional
indexable donutstyle
head support,
2 sizes
Optional
breast Support
LT-ThermoplasticTM
Module.

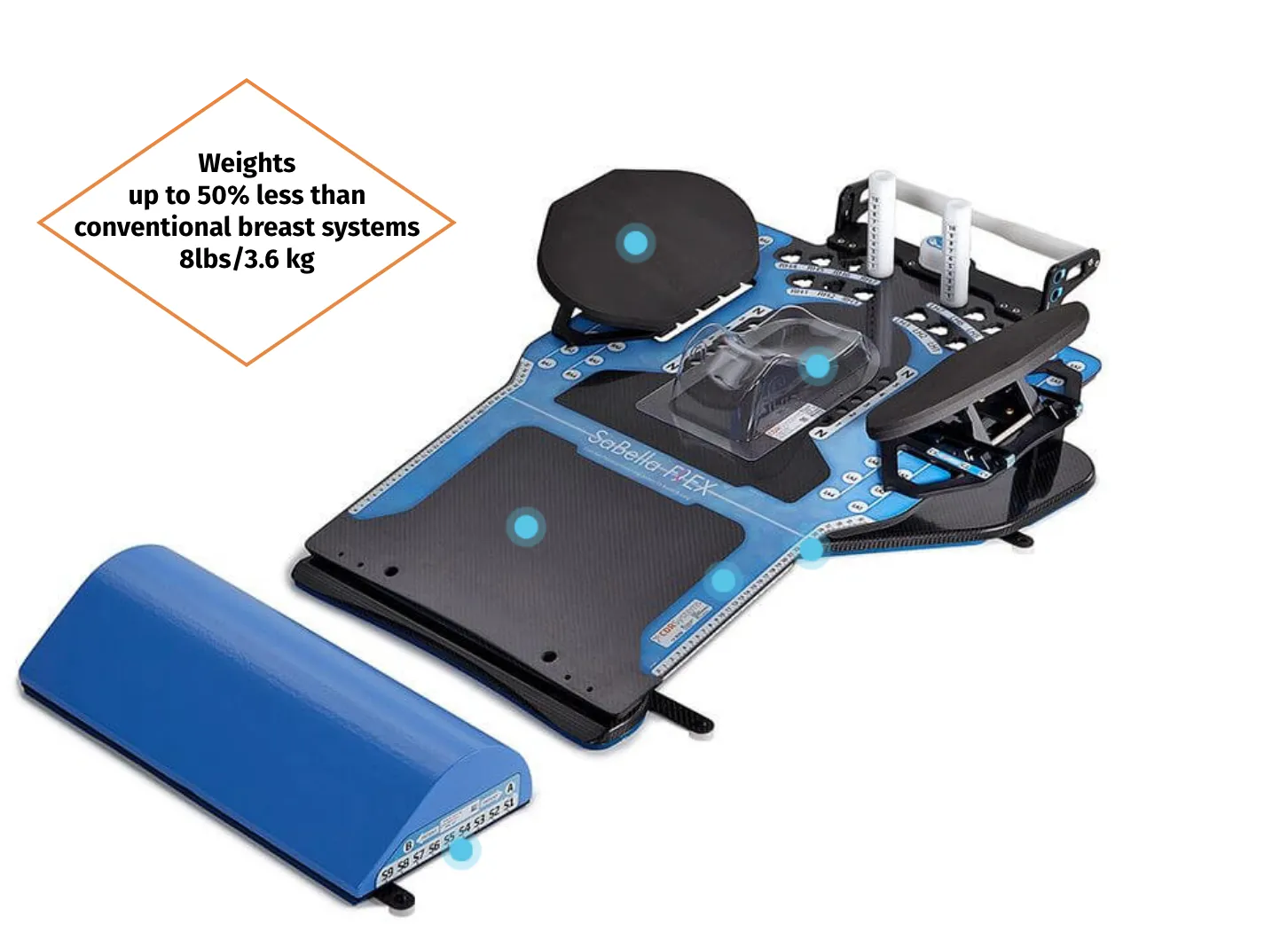

Weighs up
to 50% less than
conventional breast systems
at 3.6kg / 8lbs.
With a maximum
patient load of 400lbs,
the SaBella Flex™ provides
a strong and stable
platform for your patient.
Flex Point
Dual purpose
patient leg rest
indexable in 9 positions to fit
most patients. Combined stop
and knee support
also available.
Hover over the blue circles for additional information.
| SBS14-E | SaBella Flex™ Dual Axis Precision Positioning System Elite Package Includes: SaBella Flex™, Angle Blocks x 3 (10°, 15° & 20°), Patient Stop, C1, C2 & C3 Arm/Shoulder Positioners (2 each), Head Rest Adapter, Head Rest, Wall Mount, Vacuum Lock Module, Breast Support Module, Head & Neck Module | 1 pkg. | $0.00Add to Quote |
| SBS14 | SaBella Flex™ Dual Axis Precision Positioning System Standard Package Includes: SaBella Flex™, Angle Blocks x3 (10°, 15° & 20°), Patient Stop, C1 & C2 Arm/Shoulder Positioners (2 each), Head Rest Adapter, Head Rest | 1 pkg. | $0.00Add to Quote |
| SBS14-B | SaBella Flex™ Dual Axis Precision Positioning System Basic Package Includes: SaBella Flex™, Angle Blocks x3 (10°, 15° & 20°), Patient Stop, C2 Arm/Shoulder Positioners (2 each), Head Rest Adapter, Head Rest | 1 pkg. | |
| SBS14-WM | SaBella Flex™ Wall Mount | 1 ea. | $0.00Add to Quote |
| SBS14-VBM | SaBella Flex™ Vacuum Lock™ Module (Includes upper & lower indexing system and T-shape Vacuum Lock cushions (2) | 1 ea. | $0.00Add to Quote |
| SBS14-HNM | SaBella Flex™ Head & Neck Mask Module (includes H32 LT-Thermoplastic) | 1 ea. | $0.00Add to Quote |
| SBS14-BSM | SaBella Flex™ Breast Support Module (Includes: LT-Thermoplastic & Handles | 1 ea. | $0.00See VariationsThis product has multiple variants. The options may be chosen on the product page |
| SBS14-GDM | SaBella Flex™ Gel Donut Module (Large & Small Gel Donut, Indexing Module) | 1 ea. | $0.00Add to Quote |
| SBS14-C3 | SaBella Flex™ C3 Arm/Shoulder Positioners | 1 ea. | $0.00Add to Quote |
| SBS14-angle | SafeLock™ Wedge – {angle} can be between 5° and 28° | 1 pr. | $0.00Add to Quote |
| VB-T7993F20 | Vacuum Lock™ Cushion 79 x 93cm 20L Fill for supine Breast Boards | 1 ea. | $0.00Add to Quote |
| BS24P | LT-Thermoplastic 4-point Gen II type with handles, 2.4mm – perforated | 1 ea. | $0.00Add to Quote |
| BS24S | LT-Thermoplastic 4-point Gen II type with handles, 2.4mm – solid | 1 ea. | $0.00Add to Quote |
| BS32P | LT-Thermoplastic 4-point Gen II type with handles, 3.2mm – perforated | 1 ea. | $0.00Add to Quote |
| BS32S | LT-Thermoplastic 4-point Gen II type with handles, 3.2mm – solid | 1 ea. | $0.00Add to Quote |

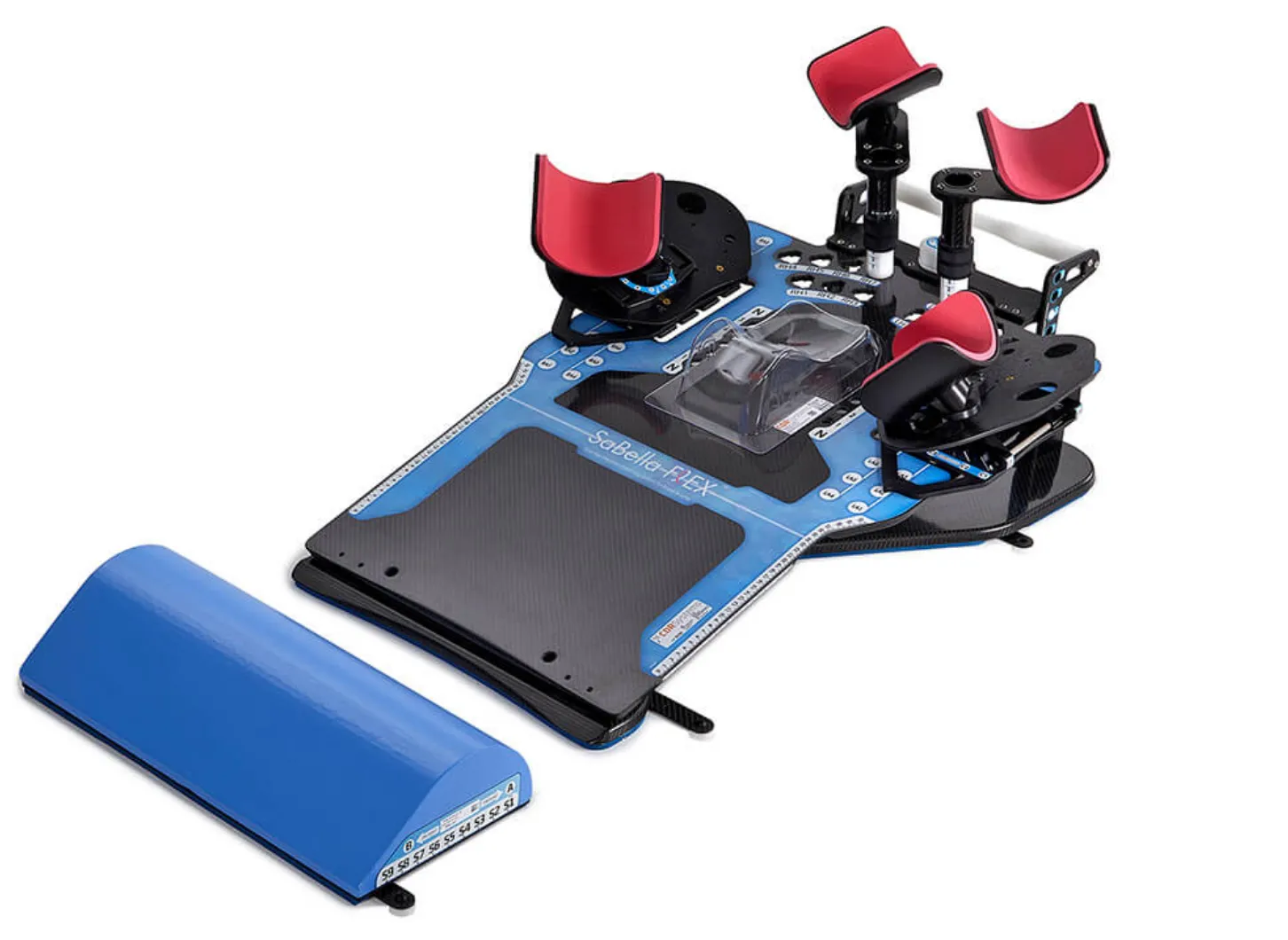

Utilizing many degrees of rotation, the SaBella Flex™ Arm Cup Module greatly improves patient comfort by holding them in a relaxed arms-up position, keeping untreated areas out of the treatment region.
The customizable format of the arm cups allow for configurations that are unique to individual patients, ensuring optimal comfort.
Arm Cup
Wrist Cup
Shoulder Positioner
Flex Point
Hover over the blue circles for additional information.
| SBS14-AP-S | SaBella Flex™ Full Arm Cup System Includes: SaBella Flex™ Arm Cups (2), Wrist Cups (2). Requires SBS14-C-ADJ | 1 pkg. | $0.00Add to Quote |
| SBS14-C-ADJ-AC | SaBella Flex™ Gen 2 Adjustable Arm/Shoulder Positioner with Full Arm Cup System. Includes: SaBella Flex™ Arm Cups (2), Wrist Cups (2), Gen Arm/Shoulder Positioner (2). | 1 pkg. | $0.00Add to Quote |
| SBS14-AP-W | SaBella Flex™ Wrist Cup Set. Includes: Wrist Cups (2) Replaces Standard Handles | 1 pkg. | $0.00Add to Quote |
| SBS14-AP-A | SaBella Flex™ Arm Cup Set. Includes: Arm Cups (2)Requires SBS14-C-ADJ | 1 pkg. | $0.00Add to Quote |
| SBS14-C-ADJ | SaBella Flex™ Gen 2 Adjustable Arm/Shoulder Positioner Includes: 2x Gen 2 Arm/Shoulder Positioner | 1 pkg. | $0.00Add to Quote |
The Sabella Flex™ Positioning System can be adjusted quickly, minimizing patient set-up and treatment time. This translates into accuracy and efficiency for both you and your patient.
The SaBella Flex™ Head & Neck module allows for masks to be attached using CDR’s unique 5 point clamp.
The SaBella Flex™ Arm and Should Positioners are extremely comfortable for patients. Use with or without Vacuum Lock Cushions.
The Sabella Flex™ Vacuum Lock™ Module increases positioning for even further accuracy.
Most of our products are available in MR Compatible version.
Click here to download MR Compatible products details or contact us for more information.
Patient Positioning Systems designed with you in mind.
Light weight, low density, better accuracy.
